6 Heads 60 Feeders PCB Pick And Place Machine PNP Machine Auto Nozzle Change

Product Categories
HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.
Contact Now

6 Heads 60 Feeders PCB Pick And Place Machine PNP Machine Auto Nozzle Change

  • 1
  • 2

Brand Name : Charmhigh

Model Number : chm-860

Place of Origin : Hunan, China (Mainland)

MOQ : 1pcs

Price : Negotiable Price

Supply Ability : 20/days

Delivery Time : 1-5days

Packaging Details : plywood box with strong foam package

Max speed : 20000 CPH

PCB size : 400 (L)*350 (W) / 800*350mm

Highest component : 12mm

Precision : ±50μm@μ±3o

Auto nozzle change : 31 position in nozzle library

Power supply : AC220V ,50/60Hz, Single phase

PCB Thickness : 0.6mm~3.5mm

Nozzle Change : Automatic nozzle change (31-hole nozzle library)

Contact Now

6 Heads 60 Feeders PCB Pick And Place Machine PNP Machine Auto Nozzle Change

6 Heads 60 Feeders PCB Pick And Place Machine PNP Machine Auto Nozzle Change

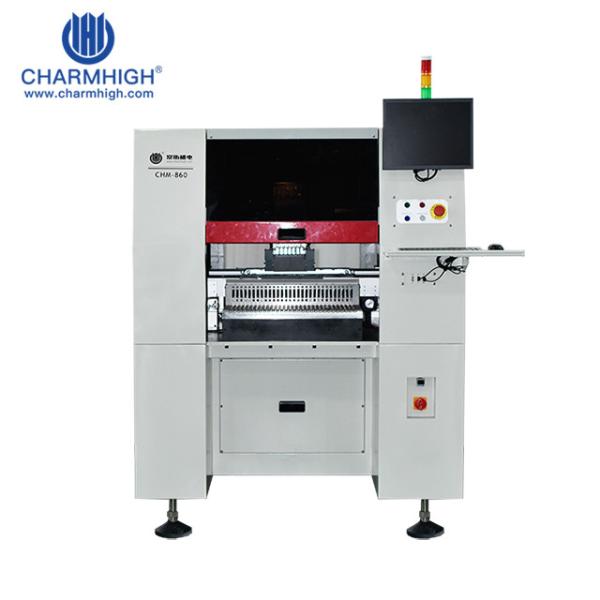

CHM-860 Specifications
Dimensions 1320mm(L)×1440mm(W)×1530mm(H)
Weight 1100kg
Power Supply AC220V (50Hz, single phase), 3kW
Air Supply 0.5MPa ~0.7MPa
Vacuum Generation Japan PISCO vacuum generator
Mounting Head Quantity 6
Mounting Speed 22000cph (optimal)
Mounting Accuracy ±50μm@μ±3σ/chip
Control Accuracy 4μm
Component Height 12mm
Component Type

0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.

(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness 0.6mm~3.5mm
PCB Size

400mm(L)×350mm(W) (standard);

800mm(L)×350mm(W) (optional)
PCB Conveying 3-section-rail automatic conveying, PCB support
Nozzle Change Automatic nozzle change (31-hole nozzle library)
Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse
Drive System X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System X&Y axis adopting TBI ground ball screw and HIWIN linear guide (Y axis with double screws)
Feeding System

60 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)
Vision System

Fly camera×6 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm);

Mark camera×2

Description:

CHM-860 is a high-confuguration pick and palce machine from Charmhigh, our engineer researched 2-3 years, It is a perfect model, with high quality machinery part, it will meet all customer demand machine. Our factory also use 8 series model for batch production, very stable. It can install NXT eletric feeeder. We strong recommend to you!

Our Service:

This SMT machine will be tested well before ship out.

Tools and manuals are complete included in the package.

Each machine 100% test well before ship out.

The complete machine has a warranty period of 1 year from the time of purchase and lifelong service.

Support as well as a long term factory price supply.

We provide online Q/A and troubleshooting support and technical advice service.

Provide one to one after-sale service.
